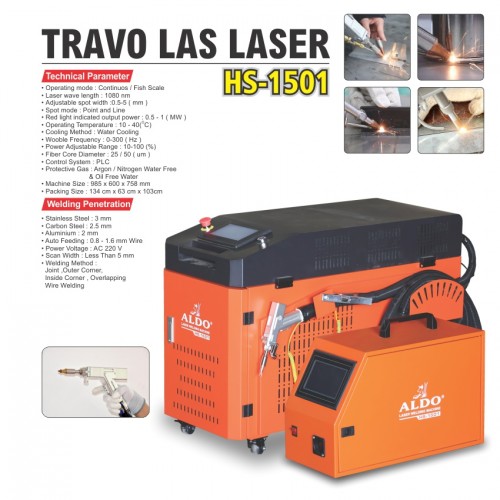

AL-TRAVOLAS LASER HS-1501

Category Welding Equipment
Item Code: 31-1158-1501
Rp 150,000,000 / PCS

Spesification:

Technical Parameter • Operating mode : Continuos / Fish Scale • Laser wave length : 1080 nm • Adjustable spot width :0.5-5 ( mm ) • Spot mode : Point and Line • Red light indicated output power : 0.5 - 1 ( MW ) • Operating Temperature : 10 - 40(OC) • Cooling Method : Water Cooling • Wooble Frequency : 0-300 ( Hz ) • Power Adjustable Range : 10-100 (%) • Fiber Core Diameter : 25 / 50 ( um ) • Control System : PLC • Protective Gas : Argon / Nitrogen Water Free & Oil Free Water • Machine Size : 985 x 600 x 758 mm • Packing Size : 134 cm x 63 cm x 103cm Welding Penetration • Stainless Steel : 3 mm • Carbon Steel : 2.5 mm • Aluminium : 2 mm • Auto Feeding : 0.8 - 1.6 mm Wire • Power Voltage : AC 220 V • Scan Width : Less Than 5 mm • Welding Method : Joint ,Outer Corner, Inside Corner , Overlapping Wire Welding
