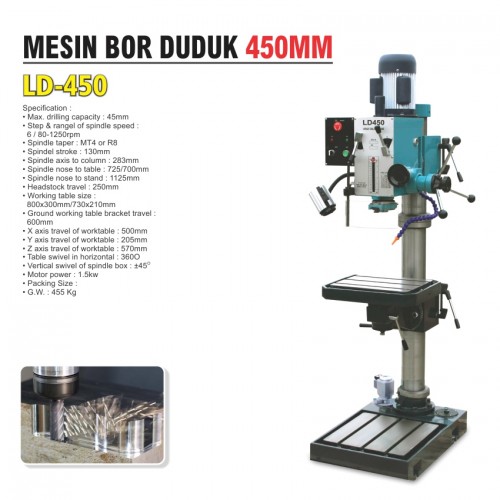

Spesification:

• Max. drilling capacity : 45mm • Step & rangel of spindle speed : 6 / 80-1250rpm • Spindle taper : MT4 or R8 • Spindel stroke : 130mm • Spindle axis to column : 283mm • Spindle nose to table : 725/700mm • Spindle nose to stand : 1125mm • Headstock travel : 250mm • Working table size : 800x300mm/730x210mm • Ground working table bracket travel : 600mm • X axis travel of worktable : 500mm • Y axis travel of worktable : 205mm • Z axis travel of worktable : 570mm • Table swivel in horizontal : 360O • Vertical swivel of spindle box : ±45O • Motor power : 1.5kw • Net weight : 430/460kg
